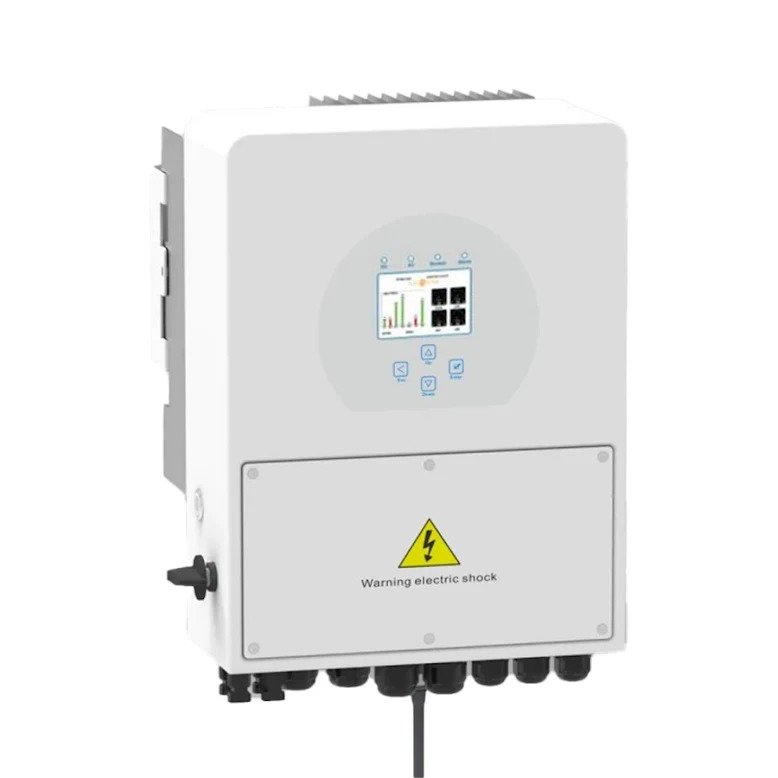

    Sunsynk 3.6kW Hybrid Inverter Single Phase ECCO

    Sunsynk 3.6kW Hybrid Inverter Single Phase ECCO

    One standout product from Sunsynk is the Ecco 3.6kW Hybrid Inverter, a highly efficient tool for managing power, perfectly suited for residential and light commercial purposes. This hybrid inverter has been meticulously engineered to enhance the utilization of self-generated solar energy while concurrently reducing electricity costs.

    This innovative hybrid inverter functions in tandem with a battery system to store surplus energy, ensuring its availability whenever needed. It boasts numerous user-friendly features, including a user-friendly display and the option for Wi-Fi or GSM monitoring (please note that a data logger is not included).

    The Product Advantages

    • Colourful touch LCD, IP65 protection degree

    • Colourful touch LCD, IP65 protection degree DC couple and AC couple to retrofit existing solar system

    • Max. 16 inverters in parallel; support multiple batteries parallel

    • 6 time periods for battery charging / discharging

    • Multiple operating modes: Grid-tie only, Hybrid, Off-grid, Battery only

    • Support storing energy from diesel generator

    • Multiple inputs: PV solar, AC grid power, Batteries, Generator

    • 5 year warranty included

    Technical Specification:

    Rated AC Output and UPS Power:
    3600W
    Battery type:
    Lead acid or Lithium-ion
    Battery voltage range:
    40-60V
    Max. charging/discharging current:
    90A
    Start-up voltage:
    125V
    No. of MPPT / Strings Per MPPT:
    2/1+1
    Maximum efficiency:
    97.60%
    Weight:
    11.4kg
    Dimensions:
    330 x 433 x 238mm (W x H x D)
    Rated AC Output and UPS Power:
    3600W
    Battery type:
    Lead acid or Lithium-ion
    Battery voltage range:
    40-60V
    Max. charging/discharging current:
    90A
    Start-up voltage:
    125V
    No. of MPPT / Strings Per MPPT:
    2/1+1
    Maximum efficiency:
    97.60%
    Weight:
    11.4kg
    Dimensions:
    330 x 433 x 238mm (W x H x D)
